Lasers for Raman Spectroscopy

The ”inelastic scattering of light”, or Raman effect, was observed in practice for the first time already in 1928 by C.V. Raman for which he was awarded the Nobel Prize in 1930. It is only in the last two decades, however, that Raman spectroscopy has begun to realize its potential as an almost universally applicable analytical technique, not only in material and life science research applications, but also as a process control tool in, for instance, pharmaceutical, food & beverage, chemical and agricultural industries.

A number of technology advancements in recent years have aided instrument manufacturers in overcoming the challenge of weak signals associated with Raman spectroscopy and enabled development of small, sensitive and user-friendly Raman instruments. These advancements include improvements in laser technology; smaller, more powerful lasers with more robust spectral performance at many different wavelengths, detectors; CCDs and InGaAs arrays that allow designs of instruments without moving parts, spectral filters; Volume Bragg Grating elements for more narrow notch filters, along with developments of new schemes for Raman signal generation and detection.

lasers for raman spectroscopy
An example of the resonance Raman effect; by choosing 355 nm rather than 473 nm laser excitation the observed Raman signals are much stronger, thus providing improved resolution. (Co W.R. Browne, Institute for Chemistry, University of Groningen, The Netherlands.

Raman spectroscopy basics

Fundamentally, Raman spectroscopy relies on illuminating a sample with a laser beam and detecting small spectral shifts in the scattered light that is caused by the interaction of the laser light with the chemical contents of the samples. Raman spectroscopy instruments come in wide range of different configurations; there are fiber-probe based Raman systems for in-line process control, ultra-high resolution Raman microscopes capable of imaging biological samples even at single-molecular level and more lately also very compact hand-held Raman devices for in-field inspection applications, e.g for detection of explosives or forensic investigations.

In pharmaceutical industries for instance, Raman-based tools are implemented throughout the whole manufacturing chain; for new drug development in biomedical laboratories through high through-put screening techniques, for quality inspection of raw materials for pharma production, for monitoring of granulation, blending and drying during pharma production and finally for non-invasive testing of produced tablets and gelcaps using high resolution chemical imaging.

Raman spectrography

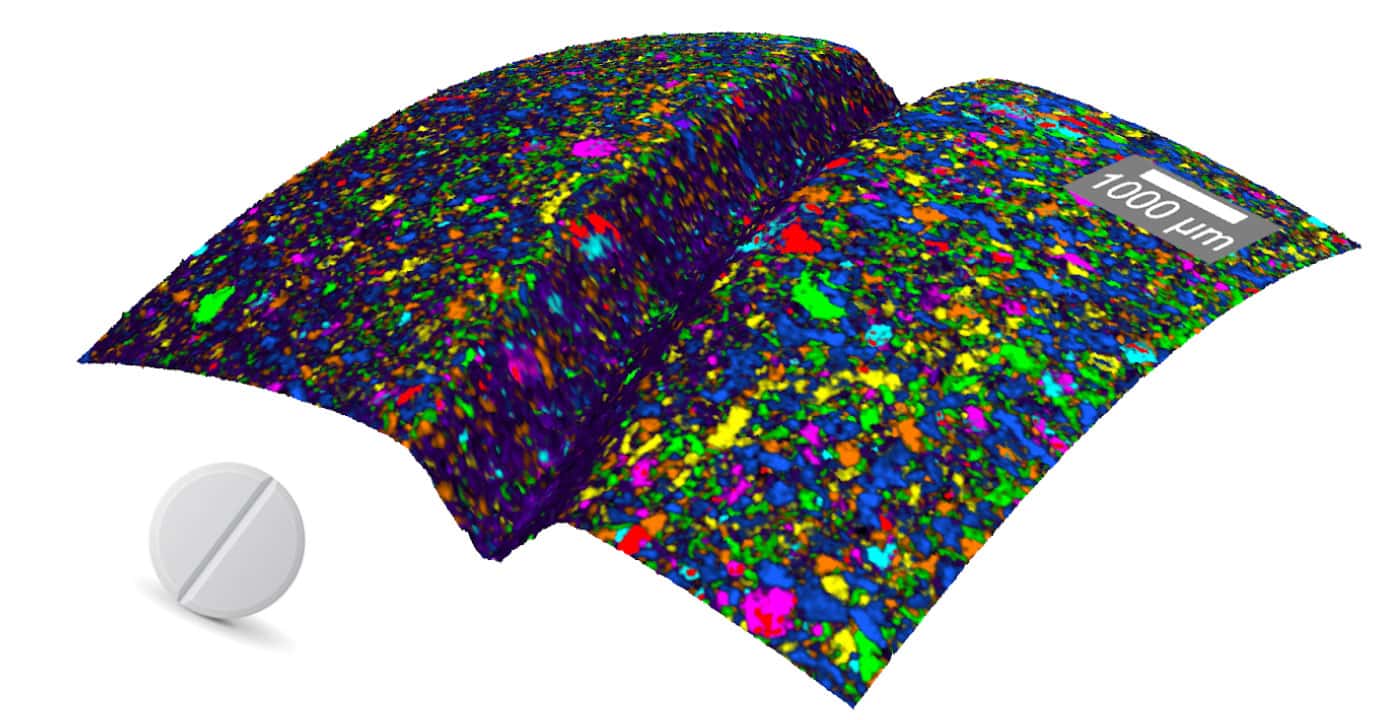

Topographic Raman image of a tablet showing the distribution of the tables compounds along the surface (co. of Witec).

Which laser wavelength works best?

A number of different wavelengths are commonly used in Raman Spectroscopy today, ranging from the UV, over the visible, and into the near IR (NIR). Choosing the best illumination wavelength for a given application is not always obvious. Many system variables must be considered in order to optimize a Raman Spectroscopy experiment, and several of them are connected to the wavelength selection. Shorter wavelength gives (much) stronger Raman signal than longer wavelengths and shorter wavelengths allows use of cost-efficient, fast and low-noise CCD detectors (up to ~800 nm). Shorter wavelengths also enables higher resolution in imaging. But shorter wavelengths on the other hand usually results in much higher background noise from fluorescence from the samples. With these considerations taken into account it turns out that for many applications the best wavelength is around 780-790 nm. (Read about the laser technology at 785 nm and understand the advantages of each type in our post: Which 785 nm laser for Raman spectroscopy?). However, for highly fluorescent materials it might be needed to go to longer wavelengths in the NIR. Illumination in the visible is also becoming more and more popular, especially for inorganic materials and for use with resonance Raman and Surface-Enhanced Raman Spectroscopy (SERS).

Furthermore, in a growing number of cases it is beneficial to go to even shorter wavelengths, into the UV. Here the Raman signal is much stronger, and at short wavelengths there are some possibilities to filter out the Raman signal from the fluorescence background. Finally, in order to utilize resonance effects to strongly enhance the Raman signal it is in some cases preferred to have a broadly tunable narrow-linewidth illumination source. Understand how all the laser specifications influence the selection of lasers to be used for Raman spectroscopy in our post “How to choose lasers for Raman spectroscopy“.

Which laser technology works best?

The Cobolt lasers offer the world’s broadest range of compact lasers perfectly suited for high resolution Raman spectroscopy applications. Stable single-frequency operation combined with the ultra-robust thermo-mechanical architecture of HTCure provides narrow linewidths with <1 MHz for all Diode Pumped Lasers (DPLs) over a large range of operating temperatures, extremely low spectral drift of <1 pm and a spectral purity guaranteed better than 80 dB (typically much better), which allows for very high resolution Raman spectroscopy and a possibility to detect low frequency Raman signals even down in the THz regime.

Narrow linewidth semiconductor diode lasers can be realised by using volume Bragg grating (VBG) technology however careful alignment of the VBG element and sensitive temperature control is needed to achieve the stable performance required for  high resolution Raman spectroscopy. The Cobolt Narrow Linewidth Diode lasers (NLDs) are based on VBG stabilization of the laser diode, for wavelengths where DPLs are not addressed. Thanks to the proprietary HTCure™ manufacturing method, which combines high precision alignment with excellent thermo mechanical stability, stable locking of the wavelengths can be achieved resulting in linewidths of <1 pm at output powers of 30 mW over a large temperature range, making the NLDs very well suited to Raman spectroscopy.

For full flexibility and access to a wide range of single frequency visible and NIR wavelengths from 450 nm – 730 nm, with excellent spectral purity (no ASE) and wavelength stability, the C-WAVE tunable lasers are unique, and combined with this wavelength flexibility the C-WAVE is in particular extremely well suited for use in niche techniques such as tip enhanced Raman spectroscopy (TERS).

Laser requirements for Raman Spectroscopy

We explain the role of a laser source in Raman spectroscopy for achieving high spectral resolution and accurate determination of chemical composition.
