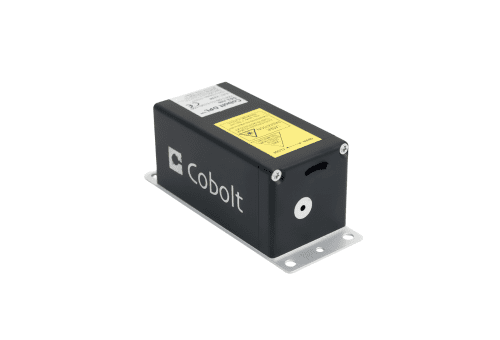

Cobolt 06-01 Series

Plug & play modulated CW lasers

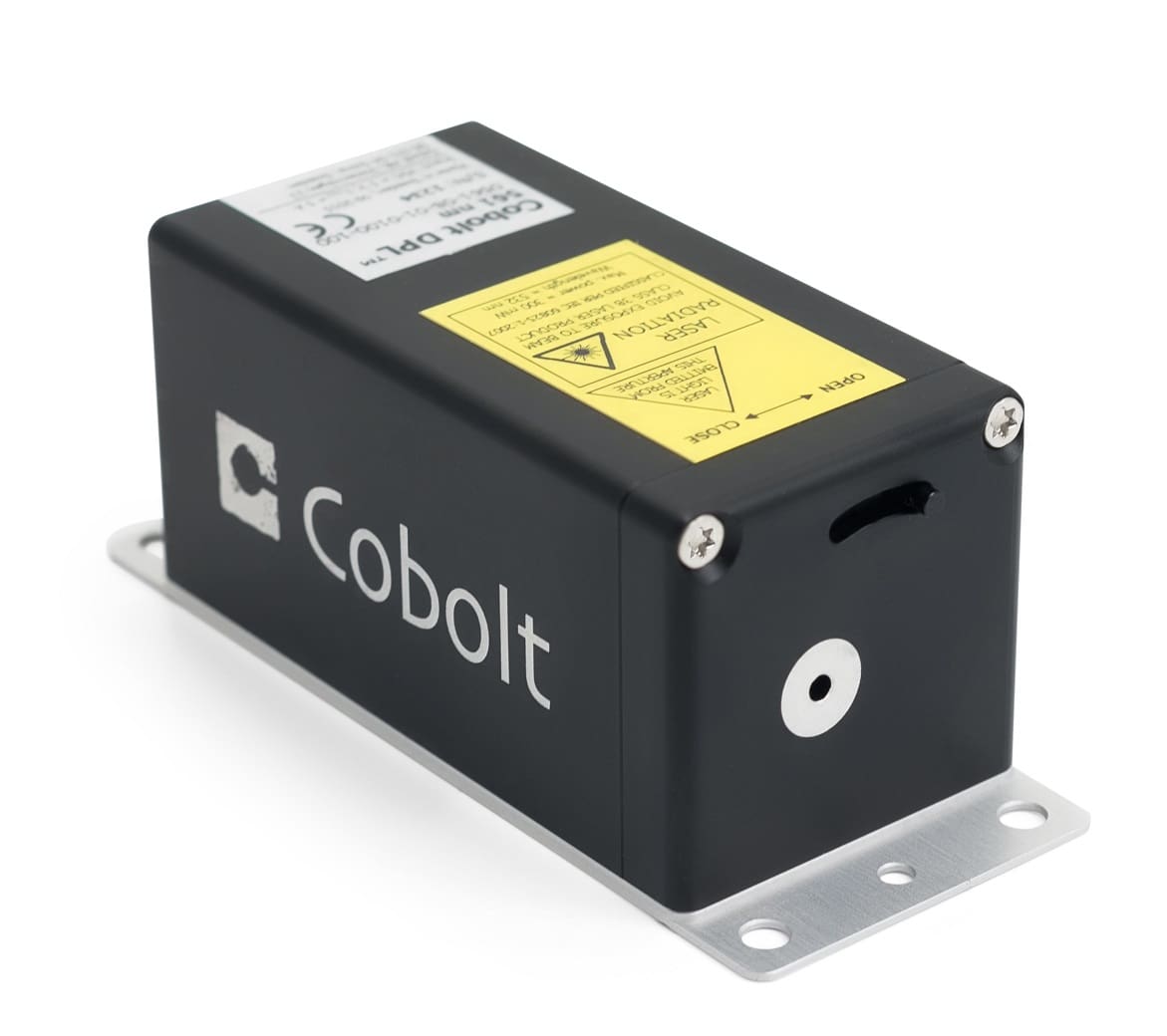

Cobolt 06-01 Series offers lasers over a large wavelength range in a compact plug and play format. The Series consists of high performance fixed wavelength diode laser modules (MLD) and diode-pumped lasers (DPL). High speed direct modulation capability and true off during modulation makes them ideal for applications in bioimaging and quantum technologies.

375 nm – 975 nm, up to 400 mW
Fully integrated electronics
Integrated clean-up filter on all diode wavelengths
Digital & analog modulation with true OFF during modulation (>70 dB)

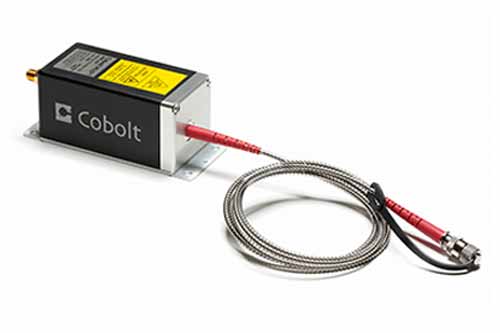

Fiber pigtailed configuration available
Compatible in the C-FLEX Laser Combiner
Ultra-robust, proven reliability
24 months warranty and < 2 weeks standard lead time

Applications

Perfect for fluorescence microscopy, flow cytometry, optogenetics, colorimetry, quantum technology, DNA sequencing.

Specifications

Product	Wavelength	Power	Fiber pigtailed option	Modulation speed (rise time)
Cobolt 06-MLD	375 nm	≤ 70 mW	-	150 MHz (<2.5 ns)
Cobolt 06-MLD	405 nm	≤ 365 mW	≤ 50 mW, 150 mW	150 MHz (<2.5 ns)
Cobolt 06-MLD	415 nm	≤ 120 mW	< 60 mW	150 MHz (<2.5 ns)
Cobolt 06-MLD	425 nm	≤ 120 mW	< 60 mW	150 MHz (<2.5 ns)
Cobolt 06-MLD	445 nm	≤ 400 mW	< 50 mW	150 MHz (<2.5 ns)
Cobolt 06-MLD	457 nm	≤ 400 mW	< 150 mW	150 MHz (<2.5 ns)
Cobolt 06-MLD	473 nm	≤ 300 mW	< 150 mW	150 MHz (<2.5 ns)
Cobolt 06-MLD	488 nm	≤ 200 mW	≤ 30 mW, 100mW	150 MHz (<2.5 ns)
Cobolt 06-MLD	505 nm	≤ 80 mW	< 40 mW	150 MHz (<2.5 ns)
Cobolt 06-MLD	515 nm	≤ 150 mW	< 75 mW	150 MHz (<2.5 ns)
Cobolt 06-DPL	532 nm	≤ 200 mW	-	<50 kHz (<6 us)
Cobolt 06-DPL	553 nm	≤ 50 mW	-	<5 kHz (<60 us)
Cobolt 06-DPL	561 nm	≤ 100 mW	-	<10 kHz (<30 us)
Cobolt 06-MLD	633 nm	≤ 80 mW	< 40 mW	150 MHz (<2.5 ns)
Cobolt 06-MLD	638 nm	≤ 180 mW	≤ 80 mW	150 MHz (<2.5 ns)
Cobolt 06-MLD	647 nm	≤ 130 mW	< 60 mW	150 MHz (<2.5 ns)
Cobolt 06-MLD	660 nm	≤ 100 mW	≤ 50 mW	150 MHz (<2.5 ns)
Cobolt 06-MLD	685 nm	≤ 40 mW	-	150 MHz (<2.5 ns)
Cobolt 06-MLD	730 nm	≤ 50 mW	-	150 MHz (<2.5 ns)
Cobolt 06-MLD	760 nm	≤ 25 mW	-	150 MHz (<2.5 ns)
Cobolt 06-MLD	785 nm	≤ 250 mW	-	150 MHz (<2.5 ns)
Cobolt 06-MLD	808 nm	≤ 120 mW	-	150 MHz (<2.5 ns)
Cobolt 06-MLD	830 nm	≤ 100 mW	-	150 MHz (<2.5 ns)
Cobolt 06-MLD	940 nm	≤ 250 mW	-	150 MHz (<2.5 ns)
Cobolt 06-MLD	975 nm	≤ 120 mW	-	150 MHz (<2.5 ns)

Performance Data (click to enlarge)

Data Sheets

Datasheet Cobolt 06-01 Series
Plug & Play Modulatable – Continuous Wave lasers

Manuals

Cobolt 06-01 Series:
Plug & play modulated CW lasers

Literature (see also applications specific pages)

References	Application	Publication
Publication B. Kemper Digital holographic microscopy PhotonicsViews 2020	Digital holographic microscopy	Photonics Views Magazine Jan 2020
Apps note TRAST microscopy for measuring oxygen concentration	Microscopy	Application note

Software

	Software	Description
	Cobolt Monitor	Cobolt Monitor^TM is a combined GUI for all Cobolt laser models. The GUI supports simultaneous connection and monitoring of multiple lasers, configured for either RS232 or USB2.0. The GUI automatically searches for new Cobolt lasers connected to the computer and presents them listed.
	USB Driver	To connect to the laser via USB, the USB driver must be installed. When installed, a virtual COM port will be created to communicate with the laser.
	Lab View	Use to integrate the Cobolt lasers into Lab view environment.
	GitHub	See a list of suggested code in C++ or Python on GitHub.
	Integration into imaging software r	A Micro-manager driver is available for Cobolt 06-01 lasers. Please search for and install the “Cobolt Official” driver from the Micro-manager library. The driver is optimized for Cobolt 06-01 Series lasers manufactured after June 2020 but also back-compatible with lasers manufactured before then. If you experience any difficulties with your Micromanager integration, please contact us at: info@coboltlasers.com.

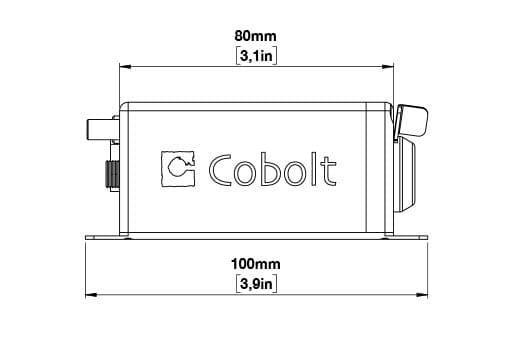

Mechanical specifications (click to enlarge)

Click here to register and download the CAD drawing (.STEP file)

Unboxing video for Cobolt 06-01 Series

Options & Accessories


Cobolt FIC-05	HS-03 Laser Head Heatsink	Cobolt TEC-plate
Mounting plate for fiber coupling	Heatsink without fans	Temperature controlled mounting plate
