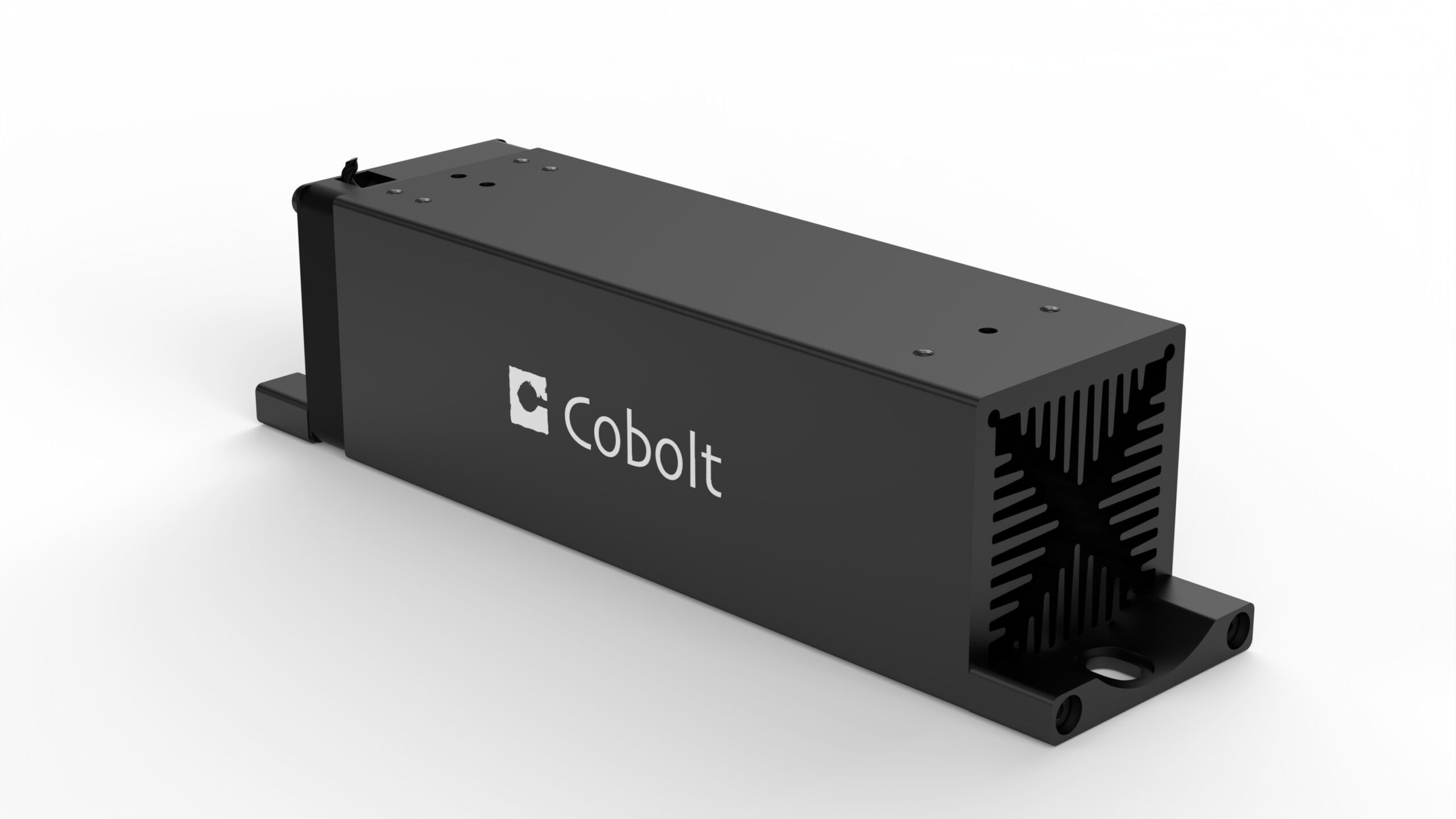

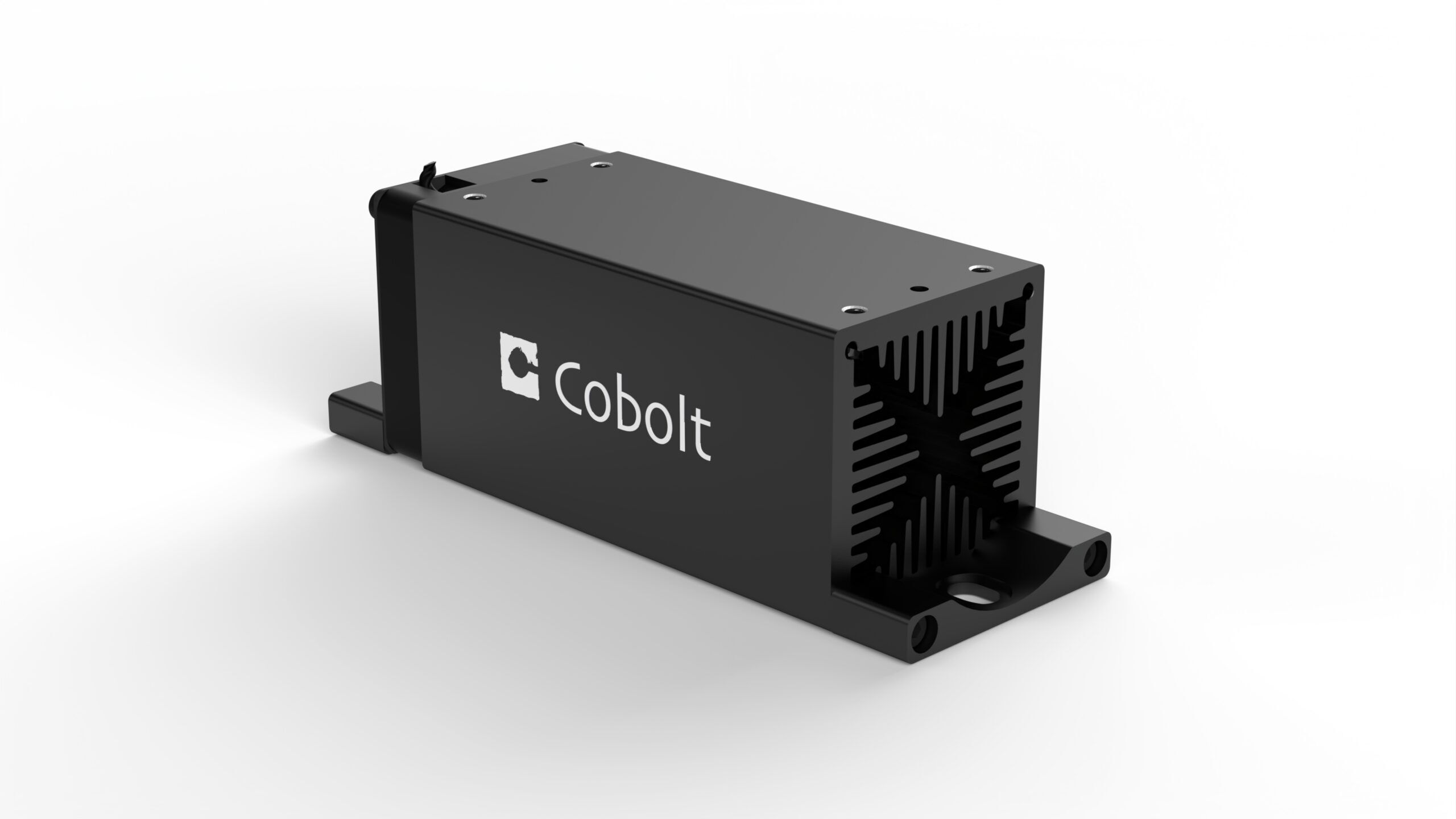

The Compact Cobolt HS-07 is a heatsink with fan to ensure laser operation within given specifications. The mounting surface is flat and designed to accommodate all Cobolt 06-01 Series and Cobolt 08-01 Series footprints and can be bolted to standard metric or imperial optical tables.

The HS-07 is powered by the PSU that comes with the lasers via an adaptor cable used between the laser and the fan. The thermal resistance of the heat sink is <1 K/W and ensures that the lasers can safely be operated in normal indoor laboratory environments with an ambient temperature below 30˚C.

It is available in 4 variants:

  • Heatsink HS-07 5V (recommended for 08-01 without isolator)
  • Heatsink HS-07 12V (recommended for 06-01 without isolator)
  • Heatsink HS-07 5V (long) (recommended for 08-01 with isolator)
  • Heatsink HS-07 12V (long) (recommended for 06-01 with isolator)
